Kev piav qhia dav dav

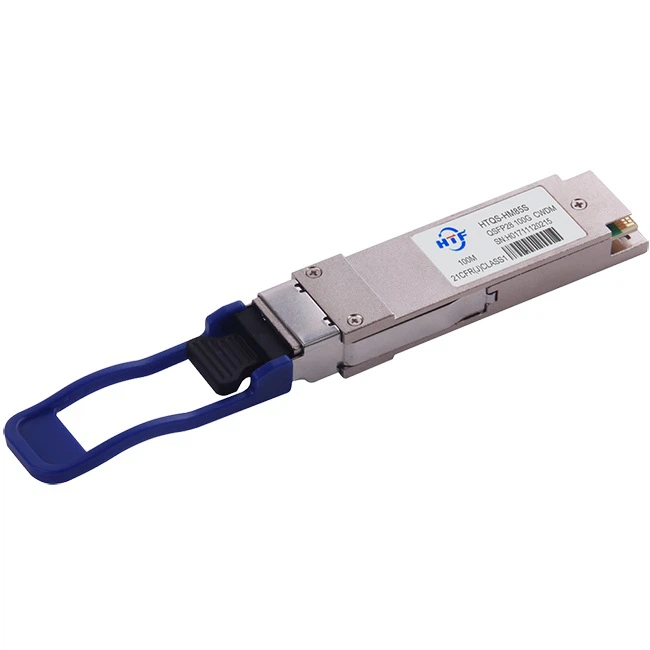

QSFP28 full-duplex optical module muaj 4 qhov kev xa tawm thiab tau txais cov channel, txhua qhov muaj peev xwm ntawm 25Gb / s haujlwm rau cov ntaub ntawv sib dhos ntawm 100Gb / s ntawm 100 meters ntawm OM4 ntau hom fiber ntau.
Ib qho xov tooj cua fiber ntau ua ke nrog MTP / MPO txuas tau txuas rau QSFP28 module qhov txais. Kev sib ncag zoo yog ntseeg tau los ntawm cov lus qhia pins sab hauv lub khoom txais. Lub cable feem ntau tsis tuaj yeem hloov kho kom haum rau cov channel kom haum sib haum. Kev sib txuas hluav taws xob tau tiav los ntawm MSA-kev ua raws 38 tus pin txuas hom txuas.
Tus qauv ua haujlwm los ntawm ib qho +3.3V fais fab mov. LVCMOS / LVTTL cov kev tswj hwm thoob ntiaj teb, xws li Module Tam sim no, Rov pib dua, Kev cuam tshuam thiab cuam tshuam tsawg zog, muaj nrog cov qauv. 2-xaim xov hluav taws xob muaj nyob rau xa thiab tau txais ntau cov laj thawj tswj hwm kom pom tseeb, thiab kom tau txais cov ntaub ntawv digital kuaj mob. Cov xov tooj ntawm tus kheej tuaj yeem raug sib hais thiab cov channel tsis siv tuaj yeem raug kaw rau ntau qhov tsim tau.
| Daim Ntawv Hom | QSFP28-100G-SR4 | Lub Hom | HTFuture |
| Encapsulation | QSFP28 | Cov Ntaub Ntawv Ntsuas | 103.1Gb / s |
| Wavelength | 850nm | Mus cuag | 100M |
| Sib cuam tshuam | MPO / MTP | LD | VCSEL |
| Cable Hom | MMF | DDM Pab Txhawb | Yog lawm |
| TX ua fais fab | -8.4 ~ 2.4dBm | Rx Sens | & lt; -10.3dBm |
| Ntsig Kub | 0 txog 70 ° C (32 txog 158 ° F) | Zoo tau lees tias | 3 xyoos |
| Lub cev txheej | 40 Gigabit Ethernet | 100 Gigabit Ethernet |
| Thaub laus | n.a. | 100GBASE-KP4 |
| Txhim kho Backplane | 40GBASE-KR4 | 100GBASE-KR4 100GBASE-KR2 |
| 7 m dhau twinax tooj liab cable | 40GBASE-CR4 | 100GBASE-CR10 100GBASE-CR4 100GBASE-CR2 |
| 30 m dhau" Cat.8" twisted khub | 40GBASE-T | n.a. |
| 100 m dhau OM3 MMF | 40GBASE-SR4 | 100GBASE-SR10 100GBASE-SR4 100GBASE-SR2 |
| 125 m dhau OM4 MMF | ||
| 500 m dhau SMF, txog ntu | n.a. | 100GBASE-DR |
| 2 km dhau ntawm SMF, txog ntu | 40GBASE-FR | n.a. |
| 10 km dhau ntawm SMF | 40GBASE-LR4 | 100GBASE-LR4 |
| 40 km dhau SMF | 40GBASE-ER4 | 100GBASE-ER4 |
Nta
● Kub-pluggable QSFP28 daim foos xaib
● Txhawb 103.1Gb / s qhov feem pua ntawm cov lej me ntsis
X 4x25G hluav taws xob sib tshuam
Ua raws li IEEE 802.3bm 100GBASE-SR4
● MTP / MPO cov khoom siv kho qhov muag
● Txog li 100m OM4 MMF kis
FF Digital Soj Ntsuam SFF -8636 ua tau raws
● RoHS-6 raws txoj cai thiab tsis muaj txhuas
Ua Raws QSFP28 MSA
● Ib qho +3.3V fais fab mov
Kev siv zog ntau tshaj 2.0W
● Tus ua haujlwm kub
Kev Ua Lag Luam: 0 ~ +70oC
Cov ntawv thov
Cov Ntaub Ntawv Chaw
Channel Fiber channel
● Ethernet hloov pauv thiab cov ntawv thov router
Optical Interface Lanes thiab Kev Ua Haujlwm
Sab nraud Saib ntawm QSFP28 Module MPO Txais Lus Cim
Neeg kho tshuab qhov ntev
Cov FAQ
1. Nqe Lus Nug: Vim li cas kuv thiaj li ntseeg siab HTFuture tshaj transceivers?
Teb: Dhau li tus nqi tsim txiaj peb tau muab piv rau cov khoom lag luam transceivers, HTFuture tshaj transceivers tseem muaj qhov kev ua haujlwm zoo ib yam thiab kev ntseeg siab. Kom txaus siab peb cov neeg siv khoom' xav tau kev ua haujlwm siab, txhua yam ntawm peb lub cev hloov mus kuaj tau ntau zaus hauv cov khoom tseem ceeb hauv cov khoom hluav taws xob hauv peb lub chaw kuaj ua ntej xa tawm.
2. Lo lus nug: Dab tsi' s 100G SR4 transceivers max kev txhawb nqa kev deb?
Teb: 100G-LR4 QSFP transceivers txhawb txog li 100m dhau multimode fiber ntau.
3. Nqe Lus Nug: Koj puas muab 100G QSFP28 cov neeg kho tsheb uas khiav lag luam ntawm qhov kub thiab txias?
Teb: Thov txim, 100G QSFP28 transceiver uas ua haujlwm ntawm qhov ntsuas kub tsis zoo tam sim no tsis muaj nyob, tab sis kev txhim kho. Thov nyob twj ywm mloog.
4. Lo lus nug: Wills nws Sib xws nrog Huawei?
Teb: Yog, nws yuav.
