Lwm cov khoom siv fiber ntau muaj xws li 32, 48, 60 lossis txawm tias 72 lub fiber, tab sis cov no feem ntau siv rau cov lag luam tshwj xeeb super high-density ntau cov kab hluav taws xob nyob hauv cov hloov kho qhov muag loj.
Nta
MPO muaj ntau qhov cores, lub siab loj, ntim me thiab muaj peev xwm loj
Ribbon cable los yog kab cable kho qhov muag tau xaiv tau, thiab 3.0, 2.0, 0.9 hli casing tuaj yeem xaiv rau ceg
Ntev raws li cov neeg siv khoom
Thov
Cov ntaub ntawv chaw cabling
Kev kub ceev cov cabling sib txuas lus system
QSFP isochromatic module
Kev sib txuas lus xov thaiv kab ke ntawm cov tsev

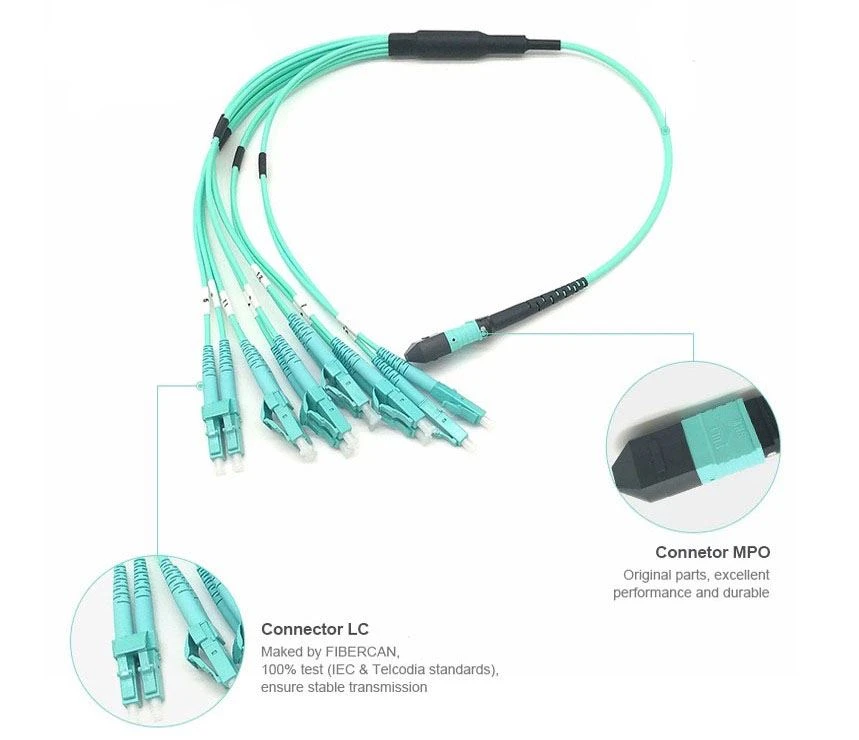

Los ntawm cov khoom sib txuas, ib kawg yog MPO / MTP txuas, lwm qhov kawg tuaj yeem yog LC / SC / FC thiab lwm cov khoom sib txuas (ntawm cov uas LC yog qhov siv ntau tshaj plaws). Cov hom sib txawv yog MPO / MTP (8-ntxhais) mus rau 4 x LC ceg fiber ntau lub jumper, MPO / MTP (12 -core) rau 6 x LC ceg fiber ntau jumper, thiab MPO / MTP (24-core) rau 12 x LC ceg fiber ntau jumper LC ceg optical fiber jumper txuas nrog 40g / 100g ntawm ib kawg thiab 10g ntawm lwm kawg los ntawm tus ntoo khaub lig yam ua ntej txuas nrog MPO / MTP thev naus laus zis. Ib qho 40g / 100g yog decomposed rau hauv ntau 10g, pom qhov zoo tshaj plaws kev hloov ntawm qhov chaw nres nkoj siab ceev (MTP / MPO) mus rau qhov chaw nres nkoj qis (LC / SC / FC). MPO / MTP-LC optical fiber jumper tuaj yeem siv rau hauv ntau qhov chaw DC ib puag ncig, xws li hloov chaw, khib vaj huam sib luag thiab lub ntsiab faib pawg, vim nws muaj ntau lub cores, compact tsim thiab me me.
Cov Khoom Muag Khoom Tshwj Xeeb

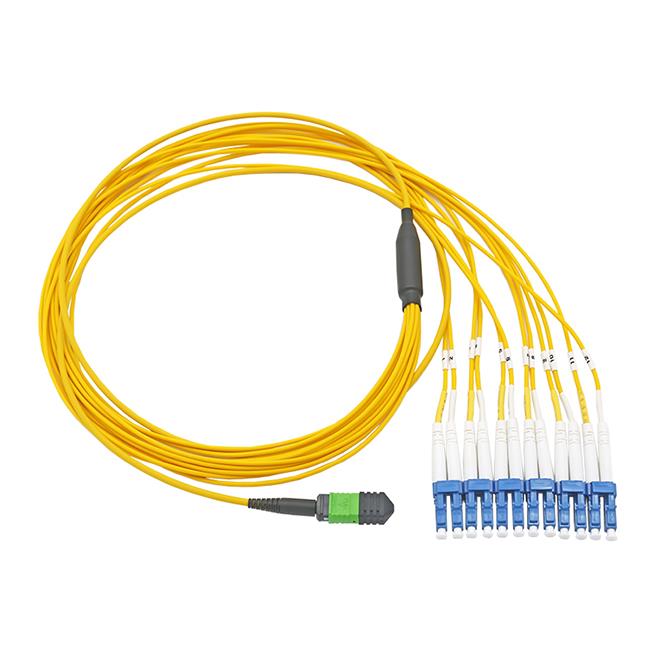

Connector A | MPO Poj Niam (pinless) | Connector B | LC UPC Duplex |
Hom Fiber | OS2 SMF 9 / 125μm | Wavelength | 1310 / 1550nm |
MPO Txuas Txuas IL | 0.35dB Max (0.15dB Ntaus.) | LC Txuas IL | 0.2dB |
MPO Txuas Txuas RL | ≥60dB | LC Connector RL | 50dB |
Attenuation ntawm 1310nm | 0.32dB / km | Kev qhia tawm ntawm 1550nm | 0.18dB / km |
Tsho OD | 3.0 hli | Ntxuam-Hauv Qhov taub | 2.0 hli |
Teeb Tensile Ntsaws | 100 N | Lub Sij Hawm Ntev Tensile Load | 50 N |
Cable Tsho | LSZH | Fiber ntau suav | 12 Pob Tsuas |
Kev khiav hauj lwm kub | -10 ° C txog +70 ° C | Cia Khoom Kub | -40 ° C rau +85 ° C |
Txuas hom | multi tub ntxhais MPO, ib leeg tub ntxhais txuas tau yuav LC / SC / FC / ST | MPO txuas xov tooj xim | daj (poob qis), xim ntsuab (SM), Turquoise (MM OM3 / OM4), beige (MM) |
Hom ntawm kho qhov muag kab | pob tw los yog pob, 3.0, 2.0, 0.9 hli casing tuaj yeem xaiv rau ceg | Kuaj wavelength | SM: 1310-1550nm, HLI: 850-1300 |
Tso tsis tau | MPO ： SM≤0.70dB ， MM≤0.50dB ， SM LL （SM Tsawg poob） ≤0.35dB LC / SC / FC / ST ： IL≤0.30dB | Rov poob | MPO: SM / APC ≥ 50dB, mm / PC ≥ 25dB; LC / SC / FC / ST: SM / APC ≥ 60dB, SM / UPC ≥ 50dB, MM ≥ 35dB |
Rov ua dua | tus nqi hloov pauv tshwj xeeb tsawg dua 0.20db tom qab 500 lub sij hawm txhaws thiab ntsaws | Ntsug nro | ≥ 120N |
Xaus ntsej muag ntxig tub ntxhais | MPO: SM yog apc8 ° thiab MM yog PC0 ° LC / SC / FC / ST yog apc8 ° lossis UPC | Xaus kev cuam tshuam ntxiv | 100% kev cuam tshuam lossis raws li cov neeg siv khoom |
Ua haujlwm kub | - 20 ℃ to + 70 ℃ | Cia kub | 40 ℃ to + 85 ℃ |
Fiber Optical Ntshiab Polarity:
Ib qho kev txuas optical niaj zaus yuav tsum tau siv ob lub iav hluav taws xob kom ua tiav tag nrho cov txheej txheem xa mus. Piv txwv, qhov kho qhov muag hluav taws xob suav nrog qhov tau txais qhov kawg thiab kev sib kis ntawm qhov kawg
Qhov txais thiab xa cov xov kawg yuav tsum ua kom muaj kev sib cuam tshuam, thiab qhov sib txuam ntawm qhov xa cov ntawv kawg (TX) rau qhov kawg tau txais (Rx) ntawm ob qhov kawg ntawm qhov txuas hluav taws xob fiber ntau hu ua polarity.
Txog qhov yuav tsum tau kaw ua ntej, siab ceev cov tsheb ciav hlau, xws li MPO / MTP sib txuas, teeb meem polarity yuav tsum raug daws.
Dab tsi yog daim ntawv thov raug ntawm MTP-LC ceg qaum?
Lub tuam txhab MTP-LC cov khoom siv dhia tau siv rau kev siv cov chaw nres nkoj txhawm rau txhawm rau hloov daim npav los pab txhawb kev sib txuas ntawm cov pob no mus rau lwm cov khoom siv. Raws li daim ntawv thov tshwj xeeb thiab dab tsi cov khoom siv ntxig, muaj ob hom ntawm cov ceg dhia dhia, khoom tsim ceg dhia thiab pob tw dhia.
MPO-LC breakout cable cov rooj sib txoos feem ntau yog siv los txo cov khoom siv sib txuas ntxiv nyob rau hauv luv luv. Lawv lub peev xwm los faib cov khoom siv fiber ntau los ntawm cov khoom siv rau ntau yam cuab yeej tso cai rau ib qho kev sib dhos cable tshem tawm qhov tsim nyog rau cov khoom siv sib txuas kim yog li txo tus nqi, teeb tsa lub sijhawm thiab cov teeb meem ntawm cov fiber ntau.
MPO Fiber Patch Qaum nrog kev txiav txim siab nrog MPO txuas ntawm ob sab kawg. MPO thaj qaum yog ib yam ntawm cov loj ntom cable kab ke uas feem ntau siv nyob rau hauv peb thaj chaw.
1, Daim Ntawv Teev Npe Khoom Siv nrog qhov siab ua kom muaj huab cua nyob ib puag ncig
2, Cov paib fiber ntau rau lub tsev
3, Daim ntawv thov sab hauv lub zog txuas hauv cov khoom siv fiber ntau.
Cov FAQ
Q: Cov txuas puas tuaj yeem sib cais nyob rau txhua qhov kawg?
A: Yog lawm. Cov txuas txuas tuaj yeem muab sib cais los tso cai rau kom yob hla cov kev sib txuas raws li xav tau.
Q: Puas yog HTF muab cov qauv pub dawb?
A: Nws nyob ntawm qhov xwm txheej tshwj xeeb. Peb yuav sim peb qhov zoo tshaj plaws kom txaus siab rau koj ..
Q: Kuv puas tuaj yeem tau txais luv nqi yog tias kuv xaj ntau?
A: Yog lawm, tau kawg. Peb' ll muaj luv nqi.
Q: Qhov no puas muaj kev tiv thaiv txheej txheej sab nrauv?
A: Nws' s sab hauv tsev nkaus xwb.
Q: Ua li cas txog lub sijhawm ua hmoov txhuas?
A: Cov qauv kuaj yuav siv sijhawm 1-2 hnub, sijhawm ntau lawm xav tau 1-2 lub lis piam.
