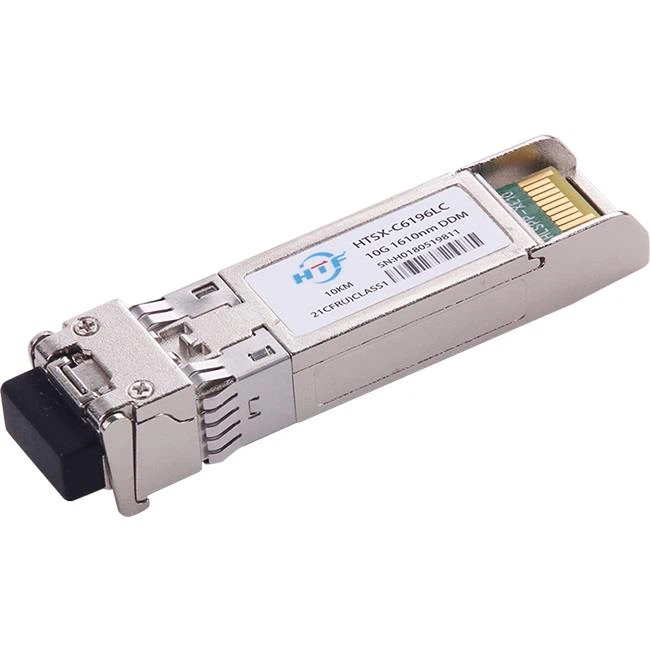

bidi fiber ntau optic lr ib hom CWDM SFP Module
Kev piav qhia dav dav
| Qauv qauv | CWDM-SFP-10G-LR | Lub Hom | HTFuture |
| Encapsulation | SFP + | Cov Ntaub Ntawv Ntsuas | 11.3Gb / s |
| Wavelength | 1270-1610 (nm) | Mus cuag | 10km |
| Sib cuam tshuam | Duplex LC | LD | CWDM DFB |
| Cable Hom | SMF | DDM Pab Txhawb | Yog lawm |
| Tx hwj chim | -6 ~ -0.5dBm | Rx Sens | & lt; -14.4dBm |
| Ntsig Kub | 0~70°C (32~158°F) | Cov khoom pov thawj zoo | 3 xyoos |
Cov Ntaub Ntawv Txiaj Ntsig Ntawm Feem Thib
| Feem Tsawg | Cov Ntaub Ntawv Tus Nqi (Gb / s) | Wavelength (nm) | Kis Qhov Chaw Deb (km) | Kub (℃) (Kev Khiav Haujlwm) |
| HTSX-Cxx96LC | 10.3125 | Xa mus xaiv xaiv nthiv | 10km SMF | 0 ~ 70 ua lag luam |
| HTSX-Cxx96LE | 10.3125 | Xa mus xaiv xaiv nthiv | 10km SMF | -10 ~ 80 txuas ntxiv |
| HTSX-Cxx96LI | 10.3125 | Xa mus xaiv xaiv nthiv | 10km SMF | -40 ~ 85 Kev Lag Luam |
Lub cev txheej modules
Cov qauv khoom tshiab tshiab tshaj yog ua kom zoo dua hauv daim ntawv me me-qhov ua tau yooj yim thauj khoom, feem ntau hu ua SFP +. Raws li cov ntawv me-qauv pluggable transceiver (SFP) thiab tsim los ntawm ANSI T11 fiber channel pawg, nws tseem me dua thiab txo qis zog dua XFP. SFP + tau dhau los ua cov hlwv nrov tshaj plaws nyob rau 10GE. SFP + cov qauv tsuas yog ua rau pom qhov hloov pauv rau hluav taws xob, tsis muaj lub moos thiab cov ntaub ntawv rov qab, muab lub nra hnyav rau tus tswv tsev' s channel sib npaug. SFP + cov qauv sib koom ua ib qho kev sib thooj ntawm lub cev nrog legacy SFP cov qauv, tso cai qhov chaw nres nkoj ntau dua XFP thiab rov siv cov qauv uas twb muaj lawm rau 24 lossis 48 chaw nres nkoj hauv 19-nti khib dav.
Cov khoos phis tawm tau txuas nrog cov tswj hwm los ntawm XAUI, XFI lossis SFI interface. XENPAK, X2, thiab XPAK siv XAUI los txuas rau lawv cov tswv. XAUI (XGXS) siv plaub-kab kev cov ntaub ntawv channel thiab tau hais meej nyob rau hauv IEEE 802.3 Clause 47. XFP modules siv XFI interface thiab SFP + modules siv SFI interface. XFI thiab SFI siv ib txoj kab nkaus xwb cov ntaub ntawv channel thiab 64b / 66b encoding tau hais tseg hauv IEEE 802.3 Clause 49.
SFP + cov qauv ntxiv tuaj yeem tau muab cais ua ob hom kev sib txuas ntawm tus tswv tsev: linear lossis limiting. Txwv txiav cov qauv tau nyiam dua tshwj tsis yog thaum siv sijhawm ntev siv 10GBASE-LRM modules.
Cov ntawv thov
● 10GBASE-LR / LW& 10G Ethernet
SDH STM64
Lwm Txuas Mus Kho Mob
Neeg kho tshuab qhov ntev
Cov FAQ
1. Nqe Lus Nug: Puas yog 40G QSFP + LR4 transceivers kev ua tsis tau zoo nrog 10G LR transceivers rau 4x10G kev txuas?
Teb: Tsis yog, 40G QSFP + LR4 Transceivers tsis tuaj yeem ua haujlwm nrog 10G LR transceivers ncaj qha vim 40G QSFP + LR4 Transceivers siv cov khoom txuas LC siv ntawm MTP / MPO cov khoom sib txuas. Yog tias koj xav tau cov transceivers kom muaj 4x10G kev sib txuas, QSFP-PLR4-40G Transceivers raug pom zoo.
2. Lo lus nug: Thov, qhov khoom lag luam yog dab tsi? Ua Tsaug.
Teb: Txhua Fiber Optic Transceivers muab cov khoom pov hwm 3 xyoos.
3. Lo lus nug: Ib hom SFP yog li cas?
Teb: Muaj kev tiv taus siab dua rau cov xaim hluav taws xob fiber ntau hom siv hauv SFP. Qhov chaw ntsiag to tau me dua thiab qhov ntev ntawm cov kab yob laser yog nqaim dua. Qhov no txhais tau hais tias SMF muaj lub peev xwm ua kom muaj ntau lub bandwidth thiab ntev ntev rau kis. Ib-zaug SFP (SMF SFP) khiav feem ntau ntawm wavelengths ntawm 1310nm thiab 1550nm thiab feem ntau siv hauv kev sib kis, 2 km, 10km, 40km, 60km, 80km, thiab 120km. Cov yeeb yuj caws pliav thiab cov xim pleev xim rau ntawm daim ntawv lo yog feem ntau xiav, daj, lossis paj yeeb. Cov hlua hluavtaws fiber ntau tiv thaiv lub teeb muaj qhov xim daj.
4. Nqe lus nug: Koj lub sijhawm coj mus kuaj yog dabtsi?
Teb: Nws yog li 1-3 hnub ua haujlwm tom qab tau txais nyiaj.
5. Lus Nug: Koj lub sijhawm xa khoom yog dab tsi?
Teb: Ex Ua Haujlwm, FOB Shenzhen, chaw nres nkoj paug yog qhov peb ib txwm ua dhau los.
6. Nqe lus nug: Koj puas xa khoom mus thoob ntiaj teb?
Teb: Yog lawm, peb tuaj yeem nkoj nyob txhua qhov chaw koj xav tau. Yog tias peb tau txais koj cov nyiaj them poob haujlwm, peb yuav xa cov khoom thauj los ntawm peb tus neeg xa khoom xa mus lossis xa tuaj rau koj tus lej xa nyiaj. Los xam qhov kev xa khoom zoo tshaj plaws rau koj, thov ua siab zoo qhia peb koj tus lej post. Yog tias koj xav tau peb tshaj tawm cov nyiaj kom txo tus nqi se ntshuam, thov tham nrog peb cov muag ntawm kab.
