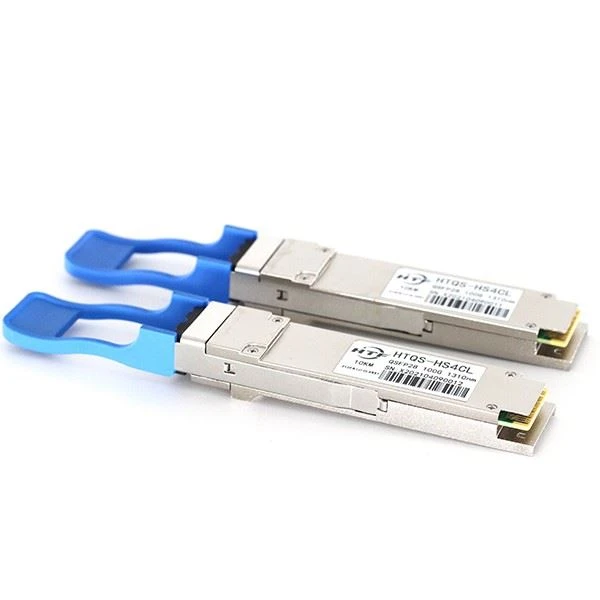

•Compliant with 100GBASE-LR4
•Support line rates from 103.125 Gb/s to 111.81 Gb/s
•Integrated LAN WDM TOSA / ROSA for up to 10 km reach over SMF
•CAUI(10x10G) Electrical Interface and 4-lane 25.78Gb/s optical interface
•Duplex LC optical receptacle
•Support Digital Diagnostic Monitoring interface
•No external reference clock
•RoHS-6 compliant and lead-free
•Compliant with QSFP28 MSA with LC connector
•Single plus 3.3V power supply
•Maximum power consumption 3.5W
•All-metal housing for superior EMI performance
•Case operating temperature
Kev lag luam: 0 ntxiv rau 70oC
Daim ntawv thov
•Data Center
•Local Area Network (LAN)
•Ethernet switches and router applications
Part Number Ordering Information
Tshooj Naj Npawb | Cov ntaub ntawv tus nqi (Gb/s) | Lub wavelength (nm) | Kis qhov deb (km) | Kub (oC) (Kev khiav hauj lwm Case) |
HTQS-HS4CL | 100 | 1296,1300 1305,1309 | 10km swb | 070 kev |
Optical yam ntxwv
Parameter | Cim | Min. | Hom | Max | Chav tsev | Sau ntawv |
Transmitter | ||||||
Lane wavelength（range） | L0 | 1294.53 | 1295.56 | 1296.59 | nm | |
L1 | 1299.02 | 1300.05 | 1301.09 | nm | ||
L2 | 1303.54 | 1304.58 | 1305.63 | nm | ||
L3 | 1308.09 | 1309.14 | 1310.09 | nm | ||
Kev taw qhia tus nqi, txhua txoj kab | 25.78125 | GBd | ||||
Sab - hom kev txwv tsis pub sib piv | SMSR | 30 | ||||
Tag nrho lub zog tso tawm | 10.5 | dBm ib | ||||
Nruab nrab lub zog tso tawm, txhua txoj kab | Pavg | -4.3 | 4.5 | dBm ib | ||
Extinction Ratio | ER | 4 | dB | |||
Transmitter thiab Dispersion Penalty, txhua txoj kab | TDP | 2.2 | dB | |||
OMA rho tawm TDP, txhua txoj kab | OMA-TDP | -2.3 | dBm ib | |||
Nruab nrab tso tawm lub zog ntawm OFF transmitter, txhua txoj kab | -30 | dBm ib | ||||
Transmitter reflectance | -12 | dB | ||||
Transmitter eye mask {X1, X2, X3, Y1, Y2, Y3} | {0.25, 0.4, 0.45, 0.25, 0.28, 0.4} | |||||
Tus txais | ||||||
Kev taw qhia tus nqi, txhua txoj kab | 25.78125 | GBd | ||||
Receiver Sensitivity ib txoj kab | Rsen | -10.6 | dBm ib | 1 | ||
Input Saturation zog (overload) | Psat | 4.5 | dBm ib | |||
LOS Assert | LOSA | -30 | dBm ib | |||
LOS De- hais | LOSD | -12 | ||||
Txais kev cuam tshuam | Rr | -26 | ||||
LOS Hysteresis | 0.5 | 4 | dB |
