Muaj nuj nqi
● Media hloov dua siab tshiab
● Teeb liab rov ua dua
● Lambda hloov dua siab tshiab
Ntsiab lus
● Txhawb ib channel 400Gbps
● Client Sab: 4x QSFP28 module
● Kab Sab: CFP2 400Gbps coherent module
● Ultra-ntev-ntev kis tau tus mob: FEC thev naus laus zis tuaj yeem siv los ua tiav 1000km kis tsis tau rov ua dua tshiab
● Loj dispersion kam rau ua: 20000ps.nm
● Txhawb qhov chaw nres nkoj loopback kuaj
● Txhawb 80 channel wavelength tunable
Ordering Information
|
Qauv |
Muaj nuj nqi |
Cov txheej txheem |
Cov neeg siv khoomSab |
KabSab |
|
HT6000-FQ2CFP2 |

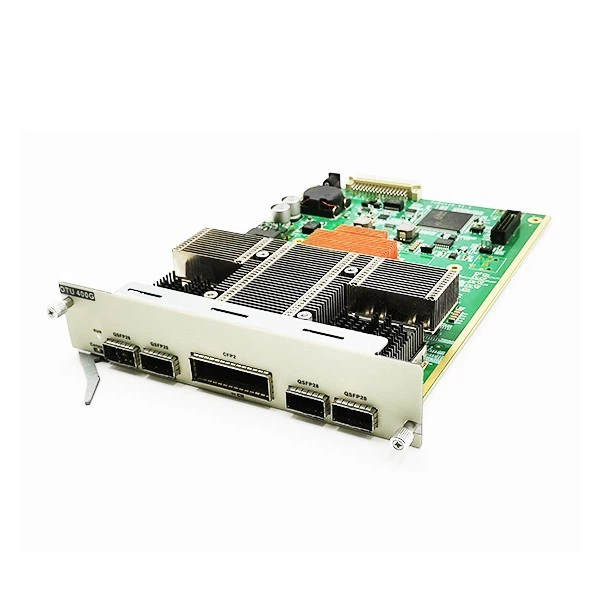

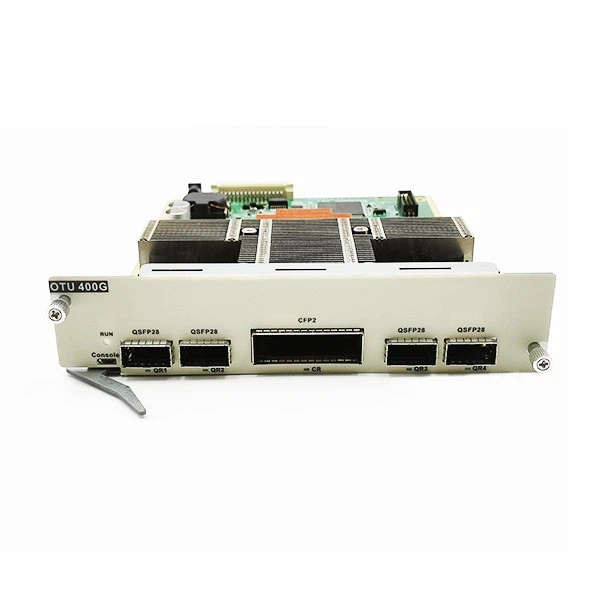

4xQSFP28 rau CFP2-DCO 400G Coherent Module Muxponder |
LAN lossis WAN PHY: 100Gbps |
QSFP28x4 |
CFP2-DCO |
Performance Parameter
|
Qhov systemParameter ntsuas |
TechnicalItus taw qhia |
|
|
Center Wavelength |
DWDM 1529.5 ~ 1565.50nm |
|
|
Cov ntaub ntawv tus nqi |
400 Gbps |
|
|
400G interface |
Client Side |
4x QSFP28 module |
|
Kab Sab |
CFP2 400Gbps coherent module |
|
|
FEC (tau txais, ncua, BER qhov pib) |
200G-QPSK, 20 feem pua SDFEC, 2x100G |
Rx OSNR Tolerance: 13.8dB |
|
200G-16QAM-PS, 20 feem pua SDFEC, 2x100G |
Rx OSNR Tolerance: 15.8dB |
|
|
400G-16QAM-PS, 20 feem pua SDFEC, 4x100G |
Rx OSNR Tolerance: 21dB |
|
|
NMS |
TELNET, SNMP, WEB |
|
|
Loj |
191 (W) x 253 (D) x 42 (H) mm |
|
|
Ib puag ncig |
Ua haujlwm kub |
-10 degree ~ 60 degree |
|
Cia Kub |
-40 degree ~ 80 degree |
|
|
txheeb ze humidity |
5% ~ 95% Tsis-condensing |
|
|
Kev siv fais fab |
Tsawg dua lossis sib npaug li 50W |
|
