Siv 4x25G↔100G multiplexing/demultiplexing

Siv 100G↔4x25G multiplexing/demultiplexing

Khoom Taw Qhia

Kev them nyiaj yug: 4x25G↔100G/100G↔4x25G

Client sab: 100G QSFP28 module

Kab sab: 4xSFP28 DWDM module (Pub 25G ports)

Txhawb nqa ib qho 100G kev pabcuam de-multiplexed rau plaub 25G tus nqi WDM tus qauv wavelength optical signals

Kev them nyiaj yug: 4x10G↔40G/40G↔4x10G

Client sab: 40G QSFP + module

Kab sab: 4xSFP + DWDM module (Four 10G ports)

Txhawb nqa ib qho 40G kev pabcuam de-multiplexed rau hauv plaub 10G tus nqi WDM tus qauv wavelength optical signals

Txhawb chaw nres nkoj loopback kuaj

Txhawb ALS muaj nuj nqi

Txhawb LFP muaj nuj nqi

Txhawb DDM digital diagnostics

Txhawb 40 yoj / 80 yoj DWDM

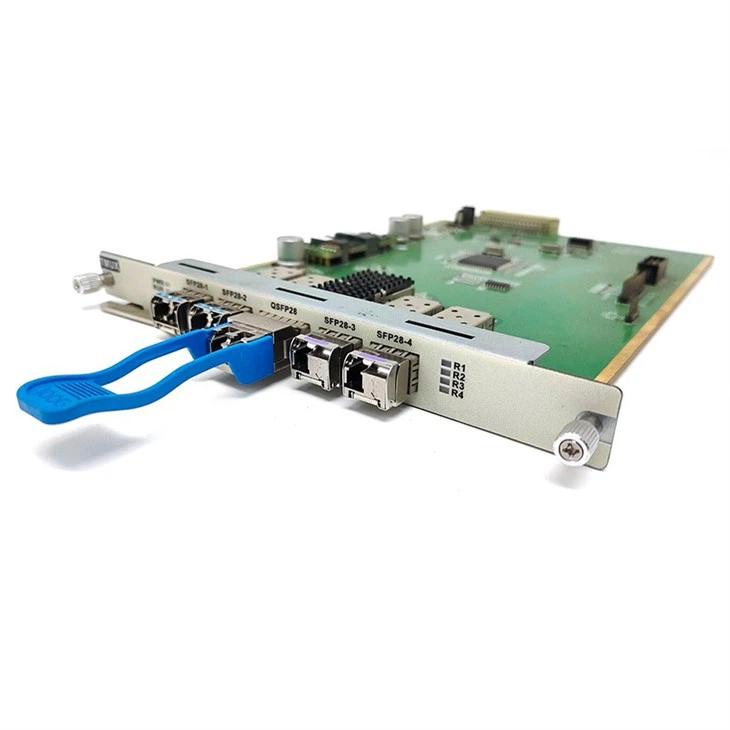

40G & 100G Transponder suav nrog QSFP28-raws li kev nkag interfaces uas tuaj yeem ua tau raws li ntau hom QSFP28, xws li Multimode Ib hom, 4SFP chaw nres nkoj yog 4x 10Gbps / 4x25G, tso cai rau kev sib txuas yooj yim ntawm cov muxponders xws li hauv WDM system. 100G coherent kev daws teeb meem, 40G & 100G Transponder DWDM kev daws teeb meem txo cov nqi thiab yog qhov txiaj ntsig zoo tshaj plaws hauv nroog cheeb tsam network thiab cov ntaub ntawv loj loj nthuav tawm kev daws teeb meem. TMUX8 haum HT6000 Series CH04, CH08, CH20 Chassis.

Specifications

Qhov System Parameter		Technical Indicator
Center Wavelength		DWDM 1529.5 ~ 1565.50nm
Cov ntaub ntawv tus nqi (Gbps)		100 Gbps / 40 Gbps
100G Interface	Client Side	100G QSFP28 module lossis 40G QSFP + module
	Kab Sab	4xSFP28 25G DWDM module lossis 4x SFP+ 10G DWDM module
NMS		TELNET, SNMP, WEB
Loj		191 (W) x 253 (D) x 20 (H) mm
Ib puag ncig	Ua haujlwm kub	-10 degree ~ 60 degree
	Cia Kub	-40 degree ~ 80 degree
	txheeb ze humidity	5% ~ 95% Tsis-condensing
Kev siv fais fab		Tsawg dua lossis sib npaug li 30W

Ordering Information

Qauv

Muaj nuj nqi

Cov txheej txheem

Client Side

Kab Sab

HTF6000-Q2FS28

40G / 100G Dual Multi-Rate muxponder

1xQSFP28 interfaces rau 4xSFP28

40G rau 4x10G / 4x10G rau 40G

QSFP+ 40G

4x SFP+ 10G DWDM Module

100G rau 4x25G / 4x25G rau 100G

QSFP28 100G

4x SFP28 25G DWDM Module

Customized DWDM Solution

product-1-1

HTF DWDM OTN khoom

product-1-1

HT6000 Series Chassis yog lub hauv paus rau kev siv thiab tswj HTF ntau qhov kev pabcuam sib xyaw ua ke

HT6000 Series Chassis xaiv tau
CH04 Chassis: 482.5 (W) x 350 (D) x 44.5 (H) mm	1U 19-inch chassis	1 network tswj qhov qhib	3 qhov kev pabcuam universal
CH08 Chassis: 482.5(W) x 350(D) x 89(H) mm	2U 19-inch chassis	1 network tswj qhov qhib	7 universal service slots
CH20 Chassis: 482.5 (W) x 350 (D) x 222.5 (H) mm	5U 19-inch chassis	1 network tswj qhov qhib	19 qhov kev pabcuam universal
Kev siv hluav taws xob: 1U<120W, 2U<200W, 5U<400W
Txhawb SNMP, Web, CLI ntau hom kev tswj hwm network
Kev them nyiaj yug dual fais fab mov redundancy tiv thaiv, Fais fab mov txhawb AC: 220V / DC: -48V yeem

HT6000 Series Chassis txhawb ntau qhov kev pabcuam sib xyaw:

100G Transponder	100 G OEO	4/8/16/40/48 Channel DWDM MUX/DEMUX, los yog OADM Card
2x100G rau 200G Muxponder	25 G OEO	4/8/16 Channel CWDM MUX/DEMUX
4x25G rau 100G Muxponder	2 x 10G OCP Transponder	OLP Optical Kab Tiv Thaiv
4x10G SFP + Transponder	8 x 1.25G Convergence 10G Muxponder	EDFA Card
