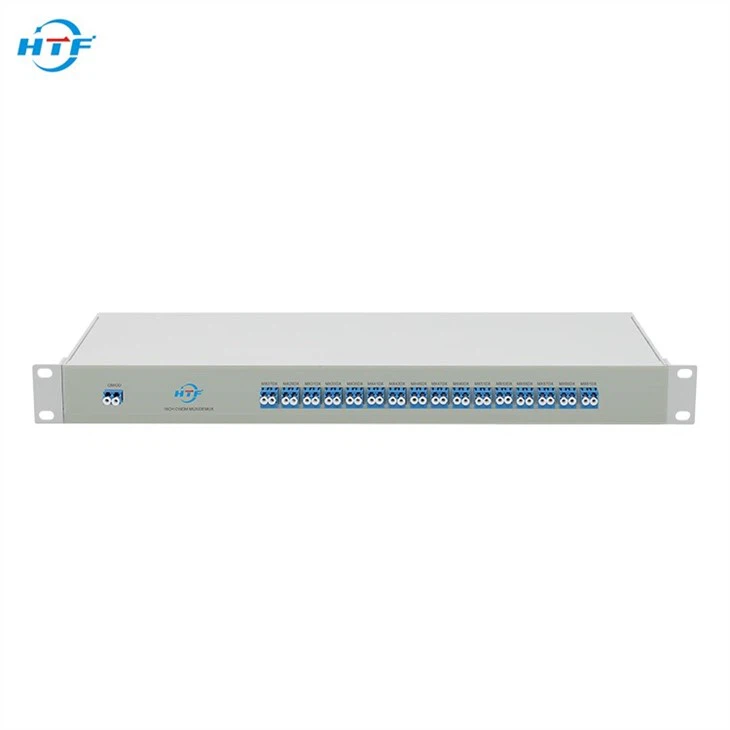

16 Raws C21-C36, nrog Saib Xyuas, LC / UPC, Dual Fiber DWDM Mux Demux, 1U Khib Mount
Optical Specification
| Tsis | 16 Channel | ||
MUX | DEMUX | ||
Channel Wavelength (nm) | ITU 100GHz Daim Phiaj | ||
Qhov chaw wavelength raug (nm) | ±0.1 | ||
Channel Sib Ntsib (nm) | 0.8nm (100GHz) | ||
Channel Passband (@ -0.5dB bandwidth (nm) | GG gt; 0.25 | ||
Poob Zoo (dB) | ≤4.0 | ||
Channel Kev Sib Tw (dB) | ≤1.5 | ||
Channel Ripple (dB) | 0.3 | ||
Kev rho tawm (dB) | Nyob sib ze | N/A | GG gt; 30 |
Tsis-nyob | N/A | GG gt; 40 | |
Inertion Poob Kub Rhiab (dB / ℃) | GG lt; 0.005 | ||
Wavelength Kub Hloov (nm / ℃) | GG lt; 0.002 | ||
Kev Saib Xyuas Qhov Txheeb Ze Tus Kheej (dB) | GG lt; 0.15 | ||
Hom Polarization Kev Sib Hloov Tawm | GG lt; 0.1 | ||
Kev Muaj Peev Xwm (dB) | GG gt; 50 | ||
Tuaj Poob (dB) | GG gt; 45 | ||
Lub Zog Siv Ntau Tshaj Plaws (mW) | 300 | ||
Dual fiber 16ch DWDM Mux Demux
Daul Fiber DWDM Mux Demux rau Ntev-Sib Tsoo Hloov Network
1. Kev Ua Seem Kev Cai thiab cov Grid Channel
2. Kev Txuas Hluav Taws Xob
Cov Khoom Txuas Txuas: Variours cov khoom sib txuas muaj, LC / SC / FC, kom tau raws li koj cov kev xav tau sib txawv hauv ntau lub sijhawm.
Hom Polish: UPC yog tsim los rau cov teeb liab thauj. APC raug pom zoo rau RF video teeb liab thauj thiab FTTx kev siv.
3. Kev Pabcuam Tshwj Xeeb.
Lub Chaw Nres Nruab Nrab: Txuas nrog lub hwj chim ntsuas los yog OPD kom paub tseeb daws teeb meem yam tsis muaj kev cuam tshuam.
1310nm Chaw nres nkoj: Tso cai rau 1310nm tsheb uas twb muaj lawm los ntxiv rau xws li 1000base SFP LX / EX, 10G SFP + LR / ER thiab 40G / 100G ER4 / LR4.
Chaw Nres Nkoj: Siv rau qhov txuas rau lwm Mux nrog cov sib txawv los nthuav cov txheej txheem DWDM uas twb muaj lawm.
4. Kev Vaj Tse Nyob
1U 19" khib mount, tuaj yeem raug mouted ntawm kev sib tw ncaj. ABS pigtailed module, tuaj yeem txuag tau ntau qhov chaw hauv daim ntawv thov. Lossis xa peb koj xav tau. HTF pab pawg yuav txhawb koj.
5. Cov Khoom Siv Kev Lag Luam Tsim Raws Koj Cov Kev Xav Tau
Xaiv ntau yam kev cai
Xaiv cov kev xaiv tsim nyog raws li koj cov ntawv thov.
Nruj Tswjhwm Zoo
Xyuas kom cov khoom lag luam zoo nrog lub xeev ntawm kev sim tshuaj.
Kev Txhawb Pab
Nrhiav kev pab los ntawm cov kws tshaj lij fab pab pawg.
