Nta
■ Nce mus txog 1.25 Gb / s bi-kev taw qhia cov ntaub ntawv txuas
■ 10/100/1000 BASE-T ua haujlwm hauv host systems nrog SGMII interface
■
HTST-ERTx / HTST-ERTC-3 ： Txhawb TX_ lov tes taw thiab tsis muaj nuj nqi Txuas
HTST-ERTx-2 / HTST-ERTx-6 ： Tsis muaj kev txhawb nqa TX_ lov tes taw thiab Txuas ua haujlwm
HTST-ERTx-4 ： Txhawb TX_ lov tes taw thiab Txuas ua haujlwm
Ua kom tiav nrog SFP MSA
■ Cov Ntawv Kub Soob Cuam Tshaj Plaws-SFP hneev
Tag Nrho Cov Hluav Taws Xob Hlau Rau Tsawg EMI
■ RoHS ua raws thiab coj tsis pub
Kev khiav hauj lwm kub qhov xwm txheej
Kev Lag Luam: 0 ~ +70 o C
Ncua: -10 ~ +80 o C
Kev lag luam: -40 ~ +85 o C
Cov Ntaub Ntawv Txiaj Ntsig Ntawm Tus Naj Npawb
Feem Tsawg | Cov Ntaub Ntawv Tus Nqi (Mb / s) | Kev Thauj Mus Deb (m) | Txuas Qhov Ntsuas ntawm RX_ LOS pin | TX_ lov tes taw nrog PHY | Kev Ntsuas Kub ( o C) (Kev Pabcuam Ua Haujlwm) |
HTST-ERTC / HTST-ERTC-3 | 10/100/1000 | 100 | Tsis yog | Yog lawm | 0 ~ 70 ua lag luam -10 ~ 80 Txuas Ntxiv -40 ~ 85 Kev Lag Luam |
HTST-ERTE / HTST-ERTC-3 | Tsis yog | Yog lawm | |||
HTST-ERTI / HTST-ERTC-3 | Tsis yog | Yog lawm | |||
HTST-ERTC-2 | Tsis yog | Tsis yog | |||
HTST-ERTE-2 | Tsis yog | Tsis yog | |||
HTST-ERTI-2 | Tsis yog | Tsis yog | |||
HTST-ERTC-4 | Yog lawm | Yog lawm | |||
HTST-ERTE-4 | Yog lawm | Yog lawm | |||
HTST-ERTI-4 | Yog lawm | Yog lawm | |||
HTST-ERTC-6 | Yog lawm | Tsis yog | |||
HTST-ERTE-6 | Yog lawm | Tsis yog | |||
HTST-ERTI-6 | Yog lawm | Tsis yog |
Kev piav qhia dav dav

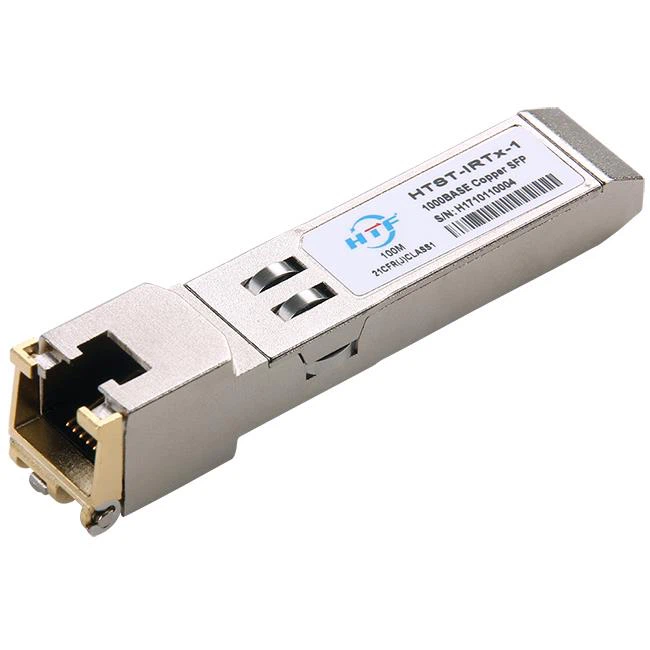

HTF 'HTST-ERTx / HTST-ERTx-2 / HTST-ERTx-3 / HTST-ERTx-4 / HTST-ERTx-6 Copper Me Daim Ntawv Uas Muaj Hnyav (SFP) transceivers yog ua raws li SFP Qhov Chaw Pom Zoo (MSA). Lawv tau sib haum nrog Gigabit Ethernet cov qauv raws li tau hais hauv IEEE STD 802.3. Lub 10/100/1000 BASE-T lub cev txheej IC (PHY) tuaj yeem nkag mus los ntawm I2C, pub nkag mus rau tag nrho cov PHY chaw thiab nta.
Lub HTST-ERTx / HTST-ERTx-3 tau sib haum nrog 1000BASE-X pib sib tham thiab txhawb nqa SERDES, tab sis tsis muaj qhov txuas qhia tau.
HTST-ERTx-2 tau sib haum nrog 1000BASE-X nws pib sib tham, tab sis tsis muaj qhov taw qhia qhov txuas (RX_LOS yog sab hauv).
HTST-ERTx-4 / HTST-ERTx-6 tau sib haum nrog 1000BASE-X nws pib sib tham, thiab muaj cov cim qhia txog txuas. PHY yog neeg xiam thaum TX_ qhov ua tsis taus siab lossis qhib.
Tsawg-ceev cov cim hluav taws xob hauv cov yam ntxwv
MOD_DEF (1) (SCL) thiab MOD_DEF (2) (SDA) yog qhib dej ntws ntawm CMOS cov cim. Ob qho MOD_ DEF (1) thiab MOD_DEF (2) yuav tsum rub mus rau host_ V CC.
Tsis | Lub Cim | Min. | Raug | Max | Chav Nyob | Sau ntawv |
SFP Qhov Tawm Tam Sim No | VOL | 0 | 0.5 | V | 4.7k txog 10k rub tawm-los host_ Vcc. | |
SFP Qhov Tso Tawm SIAB | VOH | host_ Vcc -0.5 | host_ Vcc +0.3 | V | 4.7k txog 10k rub tawm-los host_ Vcc. | |
SFP cov tswv yim tsawg | VIL | 0 | 0.8 | V | 4.7k rau 10k rub tawm-tu mus Vcc. | |
SFP Tswv Yim HIGH | VIH | 2 | Vcc + 0.3 | V | 4.7k rau 10k rub tawm-tu mus Vcc. |
General Specifications
Tsis | Lub Cim | Min. | Raug | Max | Chav Nyob | Sau ntawv |
Cov Ntaub Ntawv Ntsuas | BR | 10 | 1000 | Mb / s | IEEE 802.3 sib xws | |
Cable Ntev | L | 100 | m | Qeb 5 UTP. BER <> |
Sau ntawv:
1. Lub moos zam yog +/- 50 ppm
2. Los ntawm lub neej ntawd, HTST-ERTx yog cov khoom siv duplex ib qho khoom siv hauv cov tswv yim nyiam
3. Tsis siv neeg hla kev nrhiav tus neeg qhib haujlwm. Cov xov tooj sab nraud sab nraud tsis tas yuav tsum
4. Los ntawm lub neej ntawd, 1000 BASE-T ua haujlwm yuav tsum tau tswj hwm cov kab ke kom muaj SERDES interface tsis muaj moos.
Cov FAQ
1 、 nqe lus nug: "Qhov no yog 1000m sfp-t transceiver, tsis yog 10/100 / 1000m multi-rate sfp-t." qhov no tsuas ua haujlwm ntawm gigabit? Nws tsis ua haujlwm ntawm 100baset txhua?
Teb: Yog, nws tsuas yog ua haujlwm ntawm gigabit.
2 、 Lus Nug: Qhov no puas yuav ua haujlwm nrog Juniper?
Teb: Yog, nws yuav.
3 、 Lus Nug: Qhov no puas yuav ua haujlwm nrog Cisco?
Teb: Yog, nws yuav.
