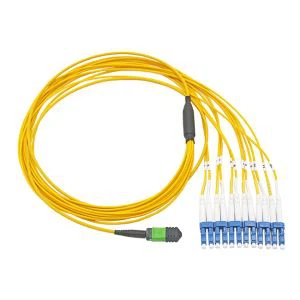

Patch Qaum MTP Rau 4LC DX OS2 Cov Dav Hlau Sib Tw
1m (3ft) MTP Poj niam mus rau 4 LC UPC Duplex 8 Fibers OS2 9/125 Ib Hom Cov Breakout Cable, Hom B, Cov Neeg Tseem Ceeb, LSZH, Daj

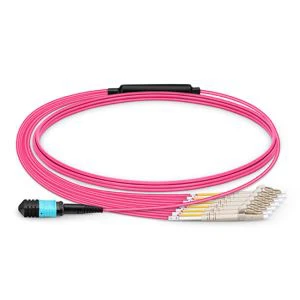

8F 12F 24F Singlemode Multimode MPO / MTP rau LC / UPC MPO cable 12 Cores Pord Qaum
MPO series muaj cov kev daws teeb meem los ntawm cov pob tw txuas mus txuas ntxiv pob tw cables, kom cov pob tw sib txuas ua ke,
rau cov tub luam kab xev, rau MPO adapter vaj huam sib luag, mus ncaj thaj vaj huam sib luag, mus ncoo panels hauv ob qho MPO kev faib tawm G chav kawm (cov chav kawm ib txwm muaj)
thiab L chav kawm (super poob qis).
Daim ntaub ntawv:
Telecom system
Cabling system
Kev kub siab ceev optical laser
QSFP cov khoom siv
Compact connector tsim, 1 MTP / MP0 txuas tuaj yeem haum 12 cores
Plug thiab unplug yoojyim rau kev txhim kho thiab tshem tawm
Cov Khoom Siv Khoom Loj
Kev siv ntawm cov hluav taws kub siab tshaj plaws cable, siab kub tsis kam, tiv thaiv cov pa taws qis nrog kev tiv thaiv ib puag ncig siab
Dust Cap Tsim
Lub plua plav yog tsim los tiv thaiv cov kab hluav taws xob cov kab hluav taws xob txuas los ntawm kev ua qias tuaj thiab ua kom puas tsuaj thiab kom ntseeg tau cov khoom sib txuas ntawm cov cim xaib
Khoom Muag Khoom
Kev piav qhia | Specification | Cov xwm txheej | |
Teeb Pom Kev Poob | MPO | SM: ≤ 0.7 dB | SM |
MTP | SM: ≤ 0.7 dB MM: ≤ 0.5 dB | ||
MPO / MTP Elite | SM: ≤ 0.35 dB MM: ≤ 0.35 dB | ||
Rov Qab Yuam Kev | SM APC: ≥ 60 dB MM PC: ≥ 30 dB | SM λ=1310/1550 hli | |
Txuas Hom | Hom | Cable Hom | Tsho Dav Hlau Hom | Txoj Kab Ke Cable (hli) |
MPO / MTP Txiv Neej | 1.SM G652D 9.OM5 (50/125) | 8-Fiber | LSZH | Liab qab Ribbon |
MTP / MPO rau LC Ib hom 8 Fiber Ntau Cov Khoom Ntxaij Cable - Plenum Rated
Khoom | MTP rau 4 Ob Qib LC Breakout Cable |
Kev Npaj Ua Ntej Txuas Nres | MTP Poj Niam rau LC |
Polished | APC lossis UPC |
Fiber ntau suav | 8 Cov Pob Khoom |
Fiber ntau hom | Ib Hom |
Tsho Xim Tsho Xim | OS2, OM1, OM2, OM3 lossis OM4 Rau Xaiv |
Txoj kab uas hla (OD) | 8 / 12Fiber: 3.0mm, 24Fibers; 3.8mm |
Teeb Pom Kev Poob | & lt; 0.35 DB Los yog<> |
Rov Qab Yuam Kev | & gt; 50db |
Tsho Khoom Siv Nkag | PVC LSZH |
Khoom Cov Ntsiab Lus | 8 Fiber Ntxuam tawm Cable, Ib hom 8 Fibre kiv cua tawm Cable, MTP mus rau LC 8 Fiber Ntxuam tawm Cable |
Kev piav qhia:
Lub QSFP (MTP) mus rau 4 x SFP + (LC) fiber ntau cable muaj ib qho MTP brand txuas rau ntawm ib kawg, tuav 8 tus xov tooj. Nws' kiv cua tawm' rau 4 LC txuas rau ntawm qhov kawg rov qab hauv duplex teeb tsa.
MTP hom txuas khoom lag luam khav theeb zoo li tshem tau cov vaj tsev thiab daim ntawv qhia siv pins - uas tsis muaj nyob ntawm cov MPO cov khoom siv sib txuas - kom ua tiav kev sib txuas zoo dua. LC txuas, nrov nyob hauv cov chaw zov me nyuam cov ntaub ntawv rau lawv qhov kev ua tau zoo, muab koj txoj kev daws teeb meem sai, txhim khu kev qha rau ib hom 40G daim ntawv thov.
Nrog Ib hom OS2 fiber ntau kho qhov muag, muaj kev hloov cov ntaub ntawv tshaj 1Gbps txuas nrog 9/125 micron iav fiber ntau qhov chaw deb txog 10,000 meters ntawm lub vias ntev ntawm 1310nm. Txog 10Gbps txuas, koj tuaj yeem hloov cov ntaub ntawv hla kev deb li 5,000 mev ntawm 1310nm, thiab 30,000 meters ntawm 1550nm.
Nta
Ib qho MTP txuas txuas txuas rau 4 LC duplex cov txuas
Kev kub siab txuas ntawm cov khoom siv network hauv chav sib txuas lus
Kev txhim kho yooj yim thiab tshem tawm nrog laub-rub latching
Daim ntawv thov:
Cov Ntaub Ntawv Cov Chaw Nkag nrog Cov Lus Qhia Daj Ceev
Fiber Channel Cia
Cov Txheej Txheem Ua Ke Ua Ke
Txoj Kev Sib Txuas Lus thiab Thaub qaum
