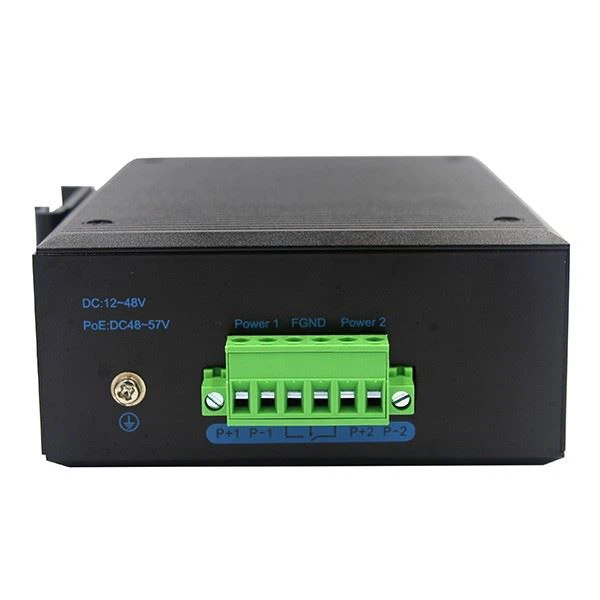

8 Ports Optical Fiber Converter

10/100BASE-TXPort

8 portRJ-45 auto-MDI / MDI-X

Kev ua haujlwm Specification

Bandwidth: 1.6 Gbps
Pob ntawv tsis nco: 1Mbit
Packet Forwarding tus nqi: 1.2Mpps
MAC Chaw Nyob Table: 2K

Kev teeb tsa

DIN tsheb ciav hlau

Ncej Loj

9000bytes pob ntawv loj

Flow Control

Rov qab siab rau ib nrab duplex, IEEE 802.3x nres ncej rau tag nrho duplex

Npog

IP40 aluminium vaj tse

Qhov taw qhia LED

Lub zog: Liab

Ethernet: daj

PIB: Green

Lub zog nkag

12 mus rau 52V DC redundant zog

Kev siv fais fab

3 watt max

Kev tiv thaiv Surge

± 4KV

Network Protocols

IEEE 802.3 10BASE-T;

IEEE 802.3i 10Base-T;

IEEE 802.3u; 100Base-TX/FX;

IEEE 802.3ab 1000Base-T;

IEEE 802.3z 1000Base-X;

IEEE 802.3x;

Network Cables

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 lossis tom qab UTP(≤10meter)

1000BASE-TX: Cat6 lossis tom qab UTP(≤100 meter)

Kev lag luam Standard

FCC CFR47 Part 15, EN55022/CISPR22, Chav A

IEC61000-4-2 (ESD): ± 8kV (kev sib cuag), ± 12kV (cua)

IEC 61000-4-3 (RS): 10V / m (80 ~ 1000MHz)

IEC61000-4-4 (EFT): Chaw nres nkoj fais fab: ± 4kV; Cov ntaub ntawv chaw nres nkoj: ± 2kV

IEC61000-4-5 (Surge): Chaw nres nkoj fais fab: ± 2kV / DM, ± 4kV / CM; Cov ntaub ntawv chaw nres nkoj: ± 2kV

IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)

IEC61000-4-16 (Common hom conduction): 30V (nrog.), 300V (1s)

Daim ntawv pov thawj

CE FCC Rohs ua raws

MTBF

& gt; 300,000hours

Qhov Loj (W x D x H)

143.7 x 103 x 47.7 mm

Qhov hnyav

Khoom hnyav: 0.52KG

Packing Nyhav: 0.62KG

Ua haujlwm ib puag ncig

Ua haujlwm kub: -40 ~ 85 ℃;

Cia kub: -40 ~ 85 ℃

Tus txheeb ze humidity: 5% ~ 95% (tsis muaj condensation)

Warranty

1-xyoo hloov nrog cov khoom tshiab; 3-xyoos rau qhov tseem ceeb.

HTIR12F

2-PortRJ45+1Port SFP/SC/FC/ST (Interface yeem) Muaj Hloov, 100Mbps

HTIR08F

4-PortRJ45 +1Port RJ-45 uplink Industrial Hloov, 100Mbps

HTIR14F

4-PortRJ45+1Port SFP/SC/FC/ST (Interface yeem) Muaj Hloov, 100Mbps

HTIR24F

4-PortRJ45+2Port SFP/SC (Interface yeem) Muaj Hloov, 100Mbps

HTIR08F

8-PortRJ45 Industrial Hloov, 100Mbps

HTIR18F

8-PortRJ45+1Port SFP/SC/FC/ST (Interface yeem) Muaj Hloov, 100Mbps

HTIR26F

6-PortRJ45+2Port SFP Industrial Hloov, 100Mbps

HTIR09F

8-Port SFP +1Port RJ45 Muaj Hloov, 100Mbps

Fais fab mov (yeem)

HTI5121-DC

DC12V / 1A, haum rau tsis-PoE Industrial hloov

HTI5241-DC

DC24V / 1A, haum rau tsis-PoE Industrial hloov

HTI5521-DC

DC52V / 1A, haum rau 1-PoE Chaw Tsim Tshuaj Hloov, lossis tsis yog-PoE Industrial hloov
