Nta

● Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade.

● Integrated OAM remote configuration and maintenance function.

● Support rich QinQ VLAN functions and IGMP Snooping multicast features.

● Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.

● Support NAT, Firewall function.

● Support IPv4 and IPv6 dual stack.

Specification

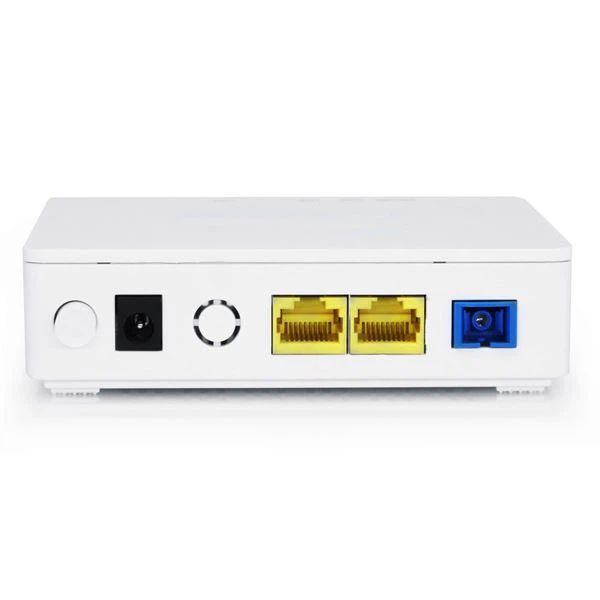

Yam khoom	1GE plus 1FE XPON ONU
PON interface	1 E/GPON port Wavelength: Tx1310nm, Rx 1490nm SC / UPC connector Receiving sensitivity: Less than or equal to -28dBm Transmitting optical zog: 0 ntxiv rau 4dBm Transmission nrug: 20KM
LAN interface	1 x 10/100/1000Mbps and 1 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
LED	For Status of Power, PON, LOS,LAN1,LAN2
Kev Ua Haujlwm	Kub: 0 degree - ntxiv rau 50 degree Humidity: 10 percent -90 percent （non-condensing）
Kev khaws cia	Temperature : -30 degree - plus 60 degree Humidity :10 percent -90 percent （non-condensing）
Fais fab mov	DC 12V, 1A / 1.5A
Kev siv fais fab	Tsawg dua los yog sib npaug rau 7W
Dimension	110mm90mm25mm（LWH）

Kev tsim kho network

XPON 1GE+1FE ONU (5)

Ordering Information

Khoom npe	Yam khoom qauv	Cov lus piav qhia
XPON HGU	1GE plus 1FE	1GE,1FE Ethernet interface,1 XPON interface, plastic casing, external power supply adapter
